LASER各种波长各种功率激光器
LASER系列从紫外激光器、紫色激光器、蓝色激光器、青色激光器、绿色激光器、黄色激光器、橙色激光器、红色激光器到红外激光器，各个波长激光，包括高稳定性、高光束质量、低噪声、高频调制、调Q、锁模等不同输出特性。不同波长不同功率激光器可供客户选择。
选型顺序 实验要求波长、功率、功率稳定性和线宽→联系销售工程师选型。

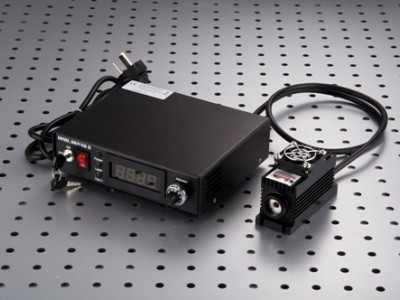

LASER980红外半导体激光器
FEATURES
Miniature size
Collimated straight beam
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
APPLICATIONS
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar
Specifications
|
Model No. |
LASER980 |
|
Wavelength |
980(+/-5) nm |
|
Spatial Mode |
multimode |
|
Output Power |
500, 800,…3000mW |
|
Operation Mode |
CW or Modulation |
|
Polarization |
10:1 |
|
Pointing Stability |
<0.05 mrad |
|
Beam Size |
6 mm |
|
Beam Divergence |
2.5 mrad |
|
Power Stability* |
<±3% per 2 hrs |
|
Beam Height |
25mm |
|
Temperature Stabilizing |
TEC |
|
Warm Up Time |
<5 minutes |
|
Beam Quality (M2) |
<2 |
|
Optimum Operating Temperature |
20~30oc |
|
Storage Temperature |
10~50oC |
|
MTTF** |
10,000 hrs |
|
Laser head dimensions |
100(L)x40(W)x50(H)mm3 |
|
Power Supply |
179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
|
Modulation |
0~30khz Analog or TTL |
