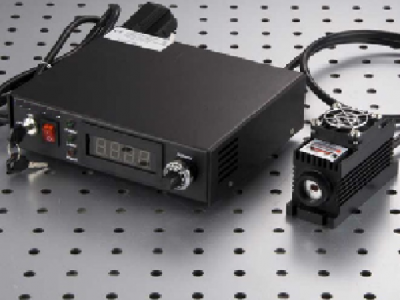

808nm拉曼光谱仪用红外激光器
SPECIFICATIONS
|
Model |
FC-D-808 (Spectrum Stabilized for Raman spectroscopy) |
|
|
Central wavelength (nm) |
808±0.5 |
|
|
Spectral line width (nm) |
0.1 (0.06, optional) |
|
|
Operating mode |
CW |
|
|
Fiber core diameter |
100µm, 0.22 NA |
|
|
Fiber connector |
SMA905 |
|
|
Output power after fiber (mW) |
>1, 100,…, 450 |
|
|
Power stability (rms, over 4 hours) |
<1%，<2%，<3% |
|
|
Central wavelength stability (rms, over 2 hours) (pm) |
<10 |
|
|
Noise of amplitude (rms, 1~20MHz) |
<1% |
|
|
Warm-up time (minutes) |
<5 |
|
|
Operating temperature (℃) |
20~30 |
|
|
Power supply |
Adaptor(85-264VAC) |
5VDC@5A |
|
Expected lifetime (hours) |
10000 |
|
|
Warranty |
1 year |
|
